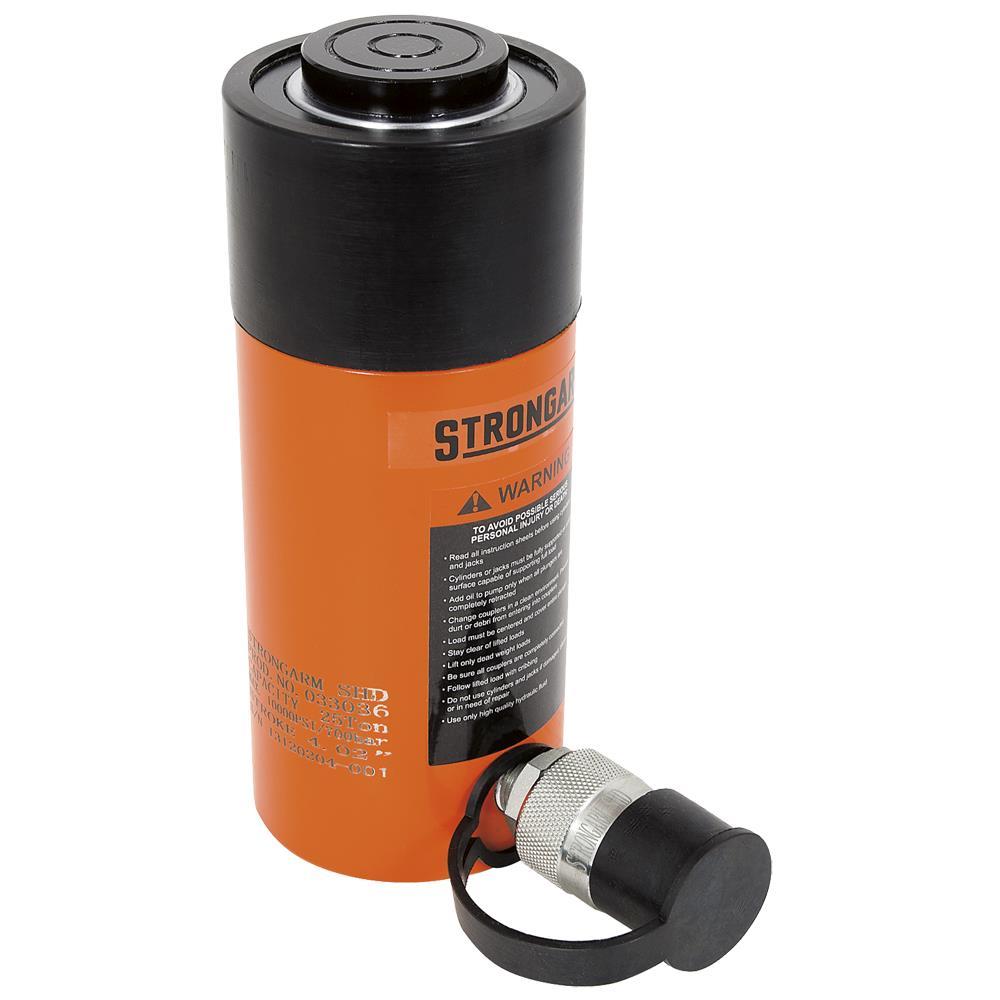

Single Acting CylindersItem is usually in stock, but we'll be in touch if there's a problem
by Strongarm
About this Item:
These general-purpose rams attach to a hydraulic pump and will lift heavy loads with minimal effort.
Call for Price
- Part Number: 033036
- UPC:
- Available quantity online:
- Available quantity in store:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Industrial Subcategory:
Industrial Subtype:
High Pressure Hydraulic Cylinders
Base Fixturing Holes - Bolt Circle (U):
2.28"
Base Fixturing Holes - Thread (V):
1/2"-13UNC
Base Fixturing Holes - Thread Depth (Z):
0.75"
Brand:
JET
Capacity @ 700 Bar (10,000 PSI):
25T
Collapsed Height (A):
8.46"
Collar Thread (C):
3-5/16" - 12
Collar Thread Length (X):
2.13"
Country of Origin:
CN
Duty Level:
Super Heavy Duty
Each Qty.:
1
Effective Area:
5.15 in²
Extended Height (B):
12.48"
Harmonized Tariff Code:
8412.21.00.90
HTS (Harmonized Tariff Schedule) Code:
8302.49.00.90
Inner Pack Qty.:
0
Item Height (inches):
4.25
Item Length (inches):
10.75
Item Quantity:
1
Item Weight (lbs):
18.1600
Item Width (inches):
7.10
Master Pack Code:
10059629998165
Model Number:
SACS254
Oil Capacity:
20,66 in³
Ordering Quantity:
1
Outside Diameter (D):
3.39"
Package Quantity:
1
Package UPC:
10059629869250
Piston Internal Thread (O):
1-1/2"-16UN
Piston Rod Diameter (F):
2.24"
Piston Thread Length (P):
1.02"
Quantity:
1
Rated Capacity:
25 T
Spring Return:
Yes
Stroke Length:
4.02"
UPC:
059629869253
UPC Code:
059629998168
UPC Number:
059629998168
Manufactured By:
Strongarm
Other Details
Baked-on enamel finish provides increased corrosion resistance
Built with a heavy-duty plunger spring return
Features collar threads, plunger threads, and base mounting holes for optional fixture attachments
Made of high-strength alloy steel for maximum durability
Professional grade 3/8”-18 NPT quick coupling
