Malleable Wire Rope ClipsItem is usually in stock, but we'll be in touch if there's a problem
by Vanguard Steel
$
0
31
/ EA
/ 1 EA
WAS
$
0
34
- Part Number: 2901 0004
- UPC:
- Available quantity online:
- Available quantity in store:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (12)
Specifications
Details
Industrial Category:
Industrial Subcategory:
Industrial Subtype:
Wire Rope Clips
Description:

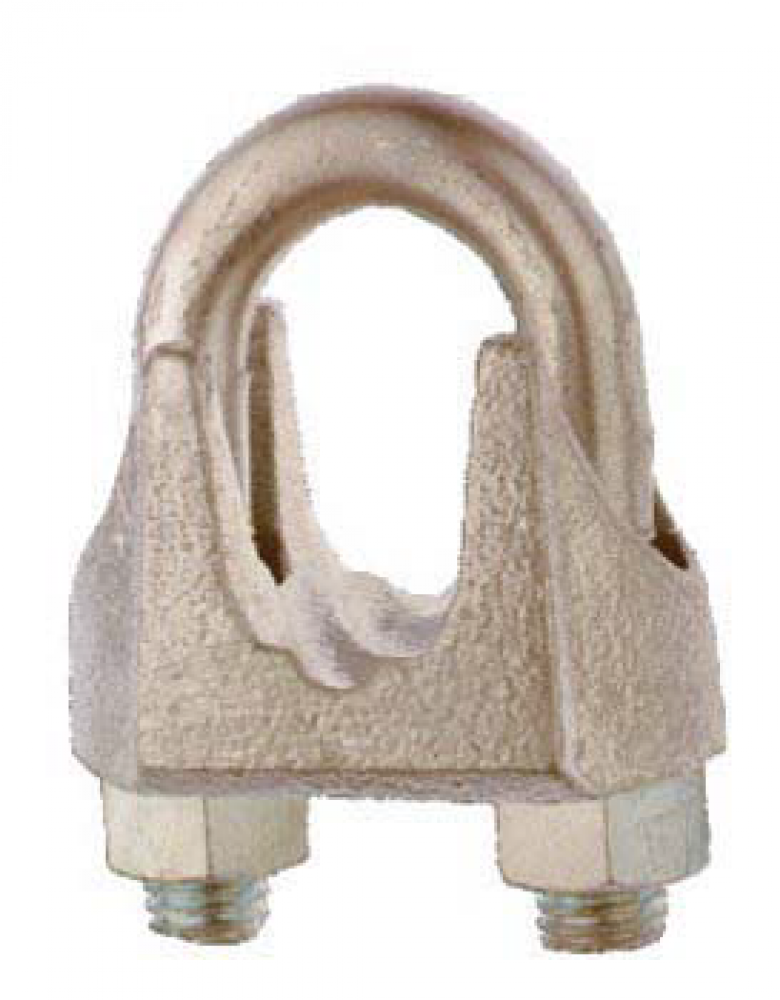

GALVANIZED MALLEABLE WIRE ROPE CLIPS
Detail:
1/16''
Dimensions (Inch) (A):
0.15
Dimensions (Inch) (B):
0.65
Dimensions (Inch) (D):
0.46
Dimensions (Inch) (F):
0.43
Dimensions (Inch) (G):
0.66
Dimensions (Inch) ©:
0.34
Dimensions (Inch) €:
0.36
Finish:
Electro-Galvanized
Item Weight (kgs):
0.014
Min. No. Clips:
3
Nut Torque (ft/lbs):
2
Rope Diameter:
1/16**
Standard:
FF-C-450D, Type 1, Class 2
Turn Back Length (Inch):
3
Type:
Light Duty
Unit:
/1
Weight:
4.3 lbs/100'
Manufactured By:
Vanguard Steel
Other Details
Electro-galvanized fi nish
Federal Specifi cation FF-C-450D, Type 1, Class 2
Rope diameter stamped on saddle
The tightening torque values shown are based upon the threads being clean, dry and free of lubrication
To be used for light duty, non-critical applications only
Torque tested threads
Typical uses include guard lines and fencing
